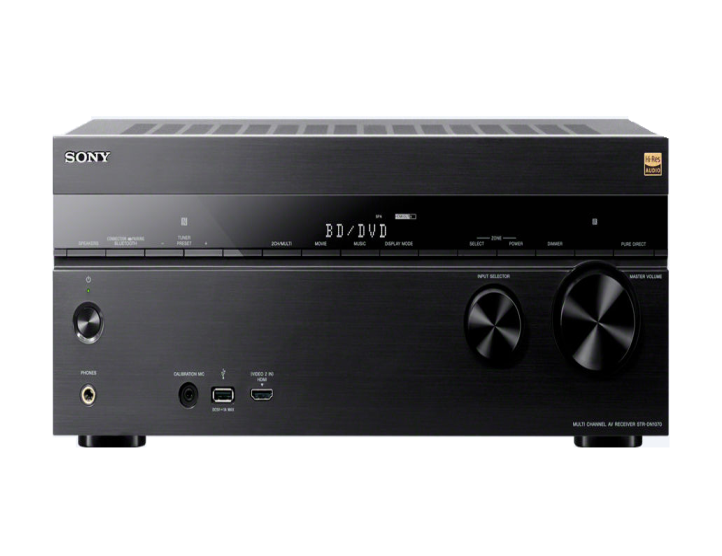

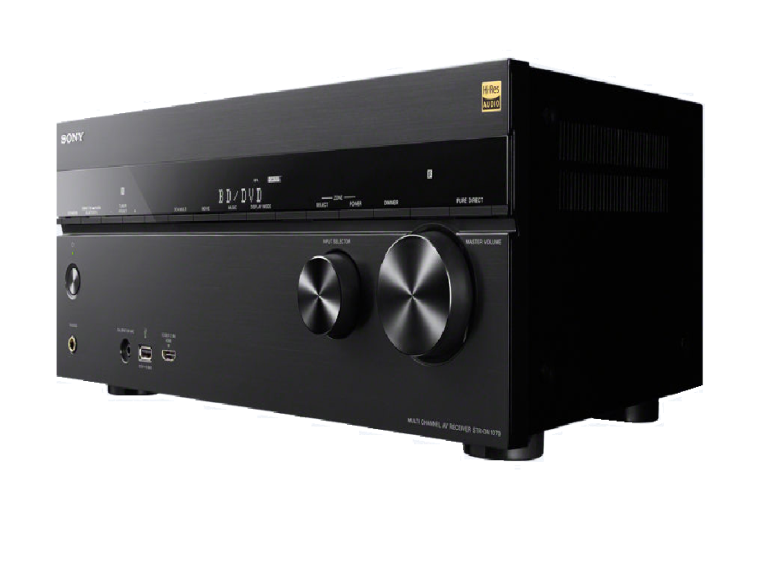

SONY STR-DN1080 AV Amplifier

SONY STR-DN1080 AV Amplifier Teknik Özellikleri

• • General Features

    GUI (Graphical User Interface)

    YES

    Auto Standby

    YES

    Amplifier

    Number of Amp. Channels

    7ch

    Bi-AMP

    YES(Common with Surround Back)

    Sound Field Program (Movie)

    YES

    Sound Field Program (Music)

    YES

    Sound Field Program (2ch)

    YES

    Sound Field Program (Headphone)

    YES

    Sound Field Program (A.F.D)

    YES

    Sound Field Program (A.F.D)

    YES

    Portable Audio Enhancer

    YES

    Portable Audio Enhancer

    YES

    HD-D.C.S. (Digital Cinema Sound)

    YES

    Digital Legato Linear

    YES

    Video Features

    HDR (High Dynamic Range)

    YES

    4K Output

    YES

    1080p/24p

    YES

    Deep Color

    YES

    x.v.Color (xvYCC)

    YES

    Video Up Scaler & Converter (Analog to Component/HDMI)

    YES

    Video Up Scaler & Converter (Analog to Component/HDMI)

    Yes (Only from HDMI Input)

    Video Down Converter (Analog to Analog)

    NO

    BRAVIA® SYNC™ (CEC Control)

    YES (One-Touch Play, System Audio Control, System Power Off)

    HDMI® Pass Through

    YES

    3D over HDMI

    YES

    Audio Return Channel

    YES

    A/V SYNC

    YES(Variable)

    Assignable HDMI Video IN

    YES

    Assignable HDMI Video IN

    6 – 1/6 Front – 5/6 Rear

    Assignable HDMI Video IN

    6 – 1/6 Front – 5/6 Rear

    Assignable Component Video IN

    NO

    Tuner Features

    RDS

    YES

    Preset Channel (Sirius/XM/FM/AM)

    (FM30/AM-)

    Interface

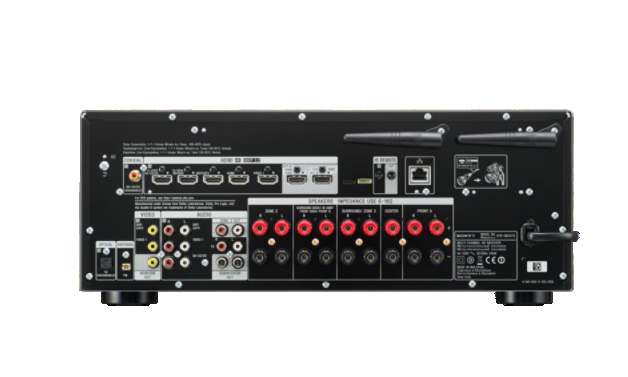

    Input and Output Terminals

    HDMI Video In/Out (6/2);HDCP2.2 In/Out(6/2);Composite Monitor Out (1);HDMI Input for Audio(2);Audio Input Coax (1);Analog Audio Input (4);Audio Input Opt (1);Headphone Output(1);Pre Out Subwoofer (2);USB (1 Front);Ethernet Port(1)

    Decoding Format

    DTS HD/DolbyTruHD/Dolby Digital+

    YES/YES/YES

    LPCM (2CH/5.1CH/7.1CH) through HDMI

    YES (192 kHz/24bit/Up to 7.1ch)

    Dolby Digital/DTS

    YES

    Dolby Digital EX

    YES

    DTS-ES (MATRIX6.1/DISCRETE6.1)

    YES/YES

    DTS 96/24

    YES

    Dolby Prologic

    YES

    Dolby Prologic II

    YES

    Dolby Prologic IIx

    YES

    DSD

    Yes (5.6MHz/Up to 5.1ch)

    Dolby Dual MoNO

    YES

    96k/24Bit PCM

    YES

    Auto Speaker Calibration

    DCAC (Digital Cinema Auto Calibration)

    YES (Advanced D.C.A.C)

    Automatic Phase Matching

    YES

    Eco and energy saving

    Power Consumption (Off Mode)

    not available

    Power Consumption (Standby Mode)

    0,3W

    Power Consumption (Networked Standby Mode) – Terminals

    2.2W(Ethernet) / 1.1W(Bluetooth) / 2W(WIFI) / 2.2W(all terminals and networks connected)

    Networked Standby Mode Activated – Terminals

    After 19 minutes (Ethernet) / 19 minutes (Bluetooth) / 19 minutes (WIFI)

    Wireless Network(s) On/Off Switch

    Change the bluetooth standby setting (MENU — Bluetooth Settings — Bluetooth Standby — ON/OFF) / Change the Romote Start setting (MENU — Network Settings — Remote Start — ON/OFF)

    Custom Install & Control Features

    2nd Zone Audio

    YES

    2nd Zone Audio

    YES

    2nd Zone Video

    NO

    2nd Zone Video

    YES

    IR Repeat (In/Out)

    YES(1/1)

    Network Connectivity

    PC Connect Update (Ethernet)

    YES

    PC Connect Update (Ethernet)

    YES

    Music Decoding Format for Network Client

    [MP3].mp3, [AAC/HE-AAC].m4a, .aac, [WMA9 Standard].wma, [LPCM].wav, [FLAC].flac, .fla, [Dolby Digital].ac3, [DSF].dsf, [DSDIFF].dff, [AIFF].aiff, .aif, [ALAC].m4a

    Spotify Connect

    YES

    Google Cast

    YES

    Size & Weight

    Dimensions (W x H x D)

    430 x 172 x 329.4 mm

    Weight

    10.5kg
